Introduction
The main filter media of Pleated Filter is made by stainless steel woven wire mesh and stainless steel fiber sintered felt.
The materials of main filter media are include 304、304L、316、316L、904L、Monel、Hastelloy etc.
Pleated filters are air or liquid filters that are composed of pleated media sheets, giving them a larger surface area. This allows them to capture a higher volume of particulate matter than other filters, making them ideal for settings that require high efficiency or where space constraints make other solutions impractical. They are made from a variety of materials, such as synthetic or natural fibers and meshes, and come in a wide range of shapes and sizes.
The pleats on pleated filters are additional layers of air or liquid filter media that is rolled around a cylindrical form giving the overall media sheet a “pleated” appearance. Pleating increases the amount of surface area of the filter, which in turn allows more air or liquid to pass through the media and thus captures more particulate matter. They are commonly used in HVAC systems, aquariums, and water systems, as well as for medical equipment and automotive applications. Additionally, pleated filters can also be used as pre-filters, helping to catch larger particle matter out of the air or liquid before they reach the main filter, in order to increase the lifespan of the main filter.
Pleated filters are often designed with a specific particle size in mind. For HVAC or industrial applications, filters may be designed to target specific microbes and particulate matter for a more effective result. A pleated filter’s level of efficiency is determined by MERV values and is generally indicated in the product description. Depending on the size and type of filter chosen, different MERV values may deliver different levels of protection, from basic dust removal to more intensive air purification.
In summary, pleated filters are composed of pleated media sheets, making them more effective than other filters in terms of capturing particulate matter and improving air or liquids quality. They are used in a variety of applications, such as HVAC systems, aquariums, and water systems, which benefit from the increased surface area and stronger filtering power of pleated filters. Pleated filters may also be designed with a specific particle size in mind and come in a wide range of shapes and sizes, allowing them to be used in efficiently and effectively in a variety of settings.
Characteristics
1.Large filtration area, Wide range of filtering accuracy
2.High porosity rate, Excellent air permeability and filtration ability.
3.Good dirt holding capacity, Economical.
4.High temperature resistance, corrosion resistance etc.
5.Easy cleaning, Recyclable.
Specification
● Filtration rate: 3-200μm
● Temperature: -50℃-800℃
● Diameter: 14-180mm, Length: 35-1500mm
● Customized also is available.
Applications
1)High polymer industry
2) Petrochemical industry
3) Pharmaceutical and food refining industry
4) Water treatment
5) Machinery and vessel industries
6) Air purification
7) Others: High temperature, high viscosity, high pressure.

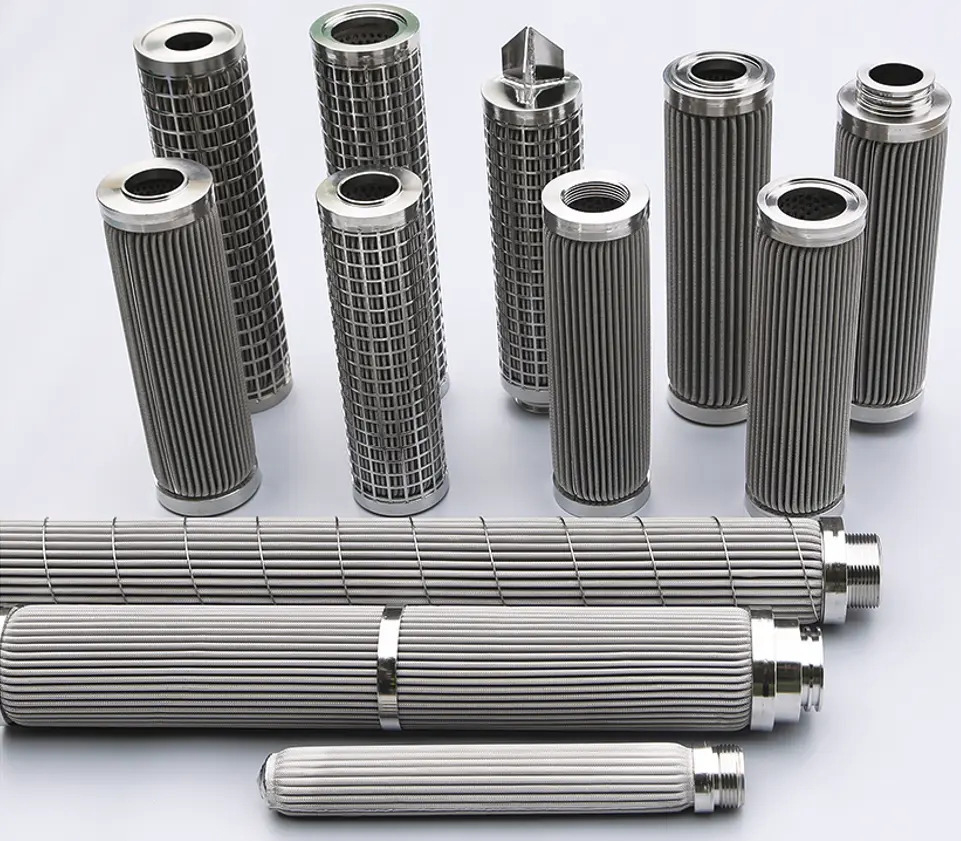

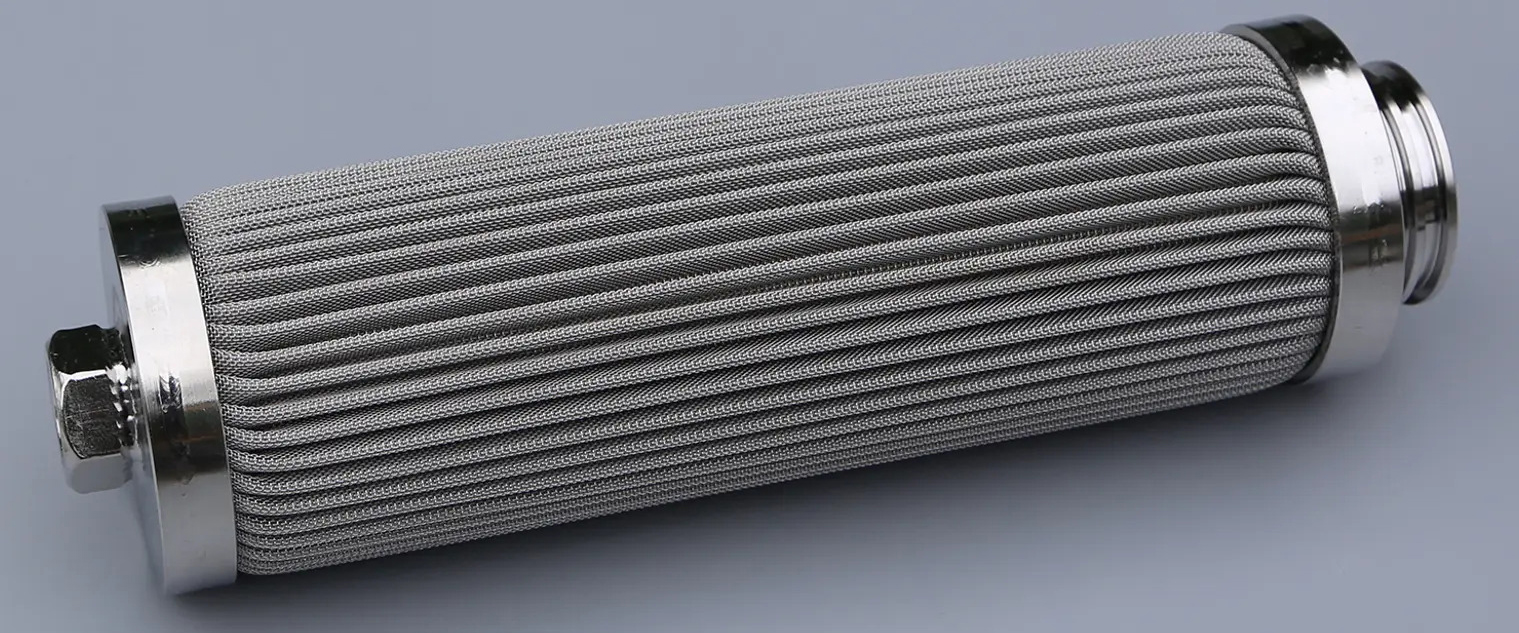

Display
