Stainless Steel Welded Mesh

Short Description:

Welded wire mesh is processed by an automated, sophisticated welding technique. The end product is level and flat with a sturdy structure and even strength throughout. The netting shows no signs of wear and tear when cutting off a part or when under stress.

Material: stainless steel wire, mild steel wire, galvanized iron wire or other metal wire.

Mild steel welded wire mesh, known as black welded wire mesh, black welded netting, black iron welded grating, is made of selected quality iron wires. It is the most economic version of welded mesh available.


Product Detail

Product Tags

Introduction

Stainless steel welded wire mesh withstands outdoor exposure without rusting, resists oxidation and is corrosive resistant.

Hot dipped galvanized welded wire mesh offers good corrosive resistance and superior quality which are not usually found in average wire mesh.

Electro galvanized welded wire mesh is widely used in industry, farming, construction, transportation and mining for protection of structures, safety segregation, keeping of poultry and livestock, and decorative uses. This welded wire mesh is of fine quality offering sturdiness and durability, economic as well as attractive.

PVC coated and sprayed welded wire mesh has corrosion resistance, aging resistance, sunshine resistance and weather resistance. Colors available for PVC coated welded wire mesh: Green, blue, white or other colors at customers’ request.

Display

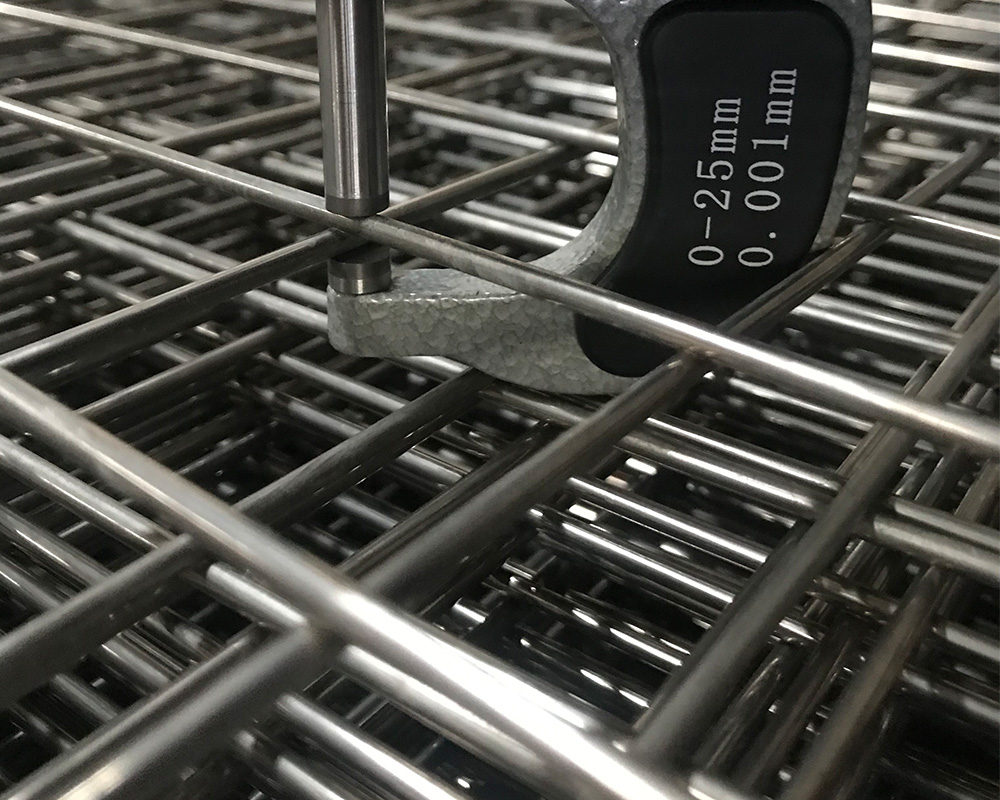

Welded Wire Mesh (1)
Welded Wire Mesh (2)
Welded Wire Mesh (3)
Welded Wire Mesh (4)

Specification

Material: Low carbon steel wire, stainless steel wire.

Weaving and characteristics:
- Hot dipped galvanizing after weaving
- Weaving with hot dipped galvanized iron wire
- Electric galvanizing after weaving
- Weaving with electric galvanized iron wire
- PVC coated welded wire mesh

Specification List of Welded Wire Mesh
Opening Wire Diameter<BWG>
In inch In metric unit(mm)
1/4" x 1/4" 6.4mm x 6.4mm 22,23,24
3/8" x 3/8" 10.6mm x 10.6mm 19,20,21,22
1/2" x 1/2" 12.7mm x 12.7mm 16,17,18,19,20,21,22,23
5/8" x 5/8" 16mm x 16mm 18,19,20,21,
3/4" x 3/4" 19.1mm x 19.1mm 16,17,18,19,20,21
1" x 1/2" 25.4mm x 12.7mm 16,17,18,19,20,21
1-1/2" x 1-1/2" 38mm x 38mm 14,15,16,17,18,19
1" x 2" 25.4mm x 50.8mm 14,15,16
2" x 2" 50.8mm x 50.8mm 12,13,14,15,16
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.
Galvanized Fencing Mesh
Opening Wire Diameter<BWG>
In inch In metric unit(mm)
2" x 3" 50mm x 75mm 2.0mm,2.5mm,1.65mm
3" x 3" 75mm x 756mm 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2" x 4" 50mm x 100mm 2.11mm,2.5mm
4" x 4" 100mm x 100mm 2.0mm,2.5mm
Technical Note:
1, Standard roll length: 30m;width: 0.5m to 1.8m
2, Special sizes available at request
3, Packing: in waterproof paper in rolls. Custom packing available at request.
PVC Coated Welded Mesh
Opening Wire Diameter<BWG>
In inch In metric unit(mm)
1/2" x 1/2" 12.7mm x 12.7mm 16,17,18,19,20,21
3/4" x 3/4" 19mm x 19mm 16,17,18,19,20,21
1" x 1" 25.4mm x 25.4mm 15,16,17,18,19,20
Technical Note:
1, Standard roll length: 30m;width: 0.5m to 1.2m
2, Special sizes available at request
3, Packing: in waterproof paper in rolls. Custom packing available at request.

Characteristic

lt possesses features of excellent corrosion resistance, flat and even surface and strong structure.

Application

Civil Use: As security & isolation fencing for pedestrian pavement, transport center and other public places.

Agriculture and Forestry: Fencing for goats, horse fencing and fencing for farms and livestock.

Industry & General Use: For machine protection, cage for equipment, support for cable and pipe, cover for fans and ventilation devices etc..
